M3 Stuart

Light US tank M3 and M5 Stuart.

US Light Tank M3 Stuart from World War II: An Overview of Its Role and Impact

The M3 Stuart was a pivotal light tank deployed by the United States and Allied forces during World War II.

Designed and manufactured to address the evolving demands of armored warfare, the M3 Stuart filled a significant role as a reconnaissance and support vehicle on the battlefield.

Entering service with the US Army and the Allies, this light tank was characterized by its relatively light armor, mobility, and speed, which enabled it to perform a variety of tasks, from gathering intelligence to supporting infantry during combat operations.

The tank’s development began in the early 1930s, culminating in the M3 series initiation in July 1940.

The Light Tank M3 evolved considerably over its lifespan, integrating battlefield learnings and technological advancements. Initially rooted in the M2A4, the M3’s modified design was primarily driven by the need for reinforced armor. It was imperative for the vehicle’s frontal armor plating to expand to 38mm thickness, with the nose area being even more fortified at 51mm – a direct result of the compelling tank clashes witnessed early in WWII.

Protecting the crew from aerial attacks was also a priority, which led to enhanced defense around the engine compartment. Integral to this development was the ability of the M3 to sustain such armor enhancements, a feat managed by the addition of a robust suspension system. These adaptations saw the Light Tank M3 enter production in early 1941, signifying a significant shift in U.S. armored warfare capabilities.

The M3 Stuart’s contribution to the war effort was notable, as it was provided to British and Commonwealth forces under the Lend-Lease program before the United States formally entered the conflict.

Despite being under-gunned compared to the tanks they faced, the M3 Stuarts were well-received for their mechanical reliability and the tactical advantage their mobility granted Allied forces, particularly in the North African campaign.

Through incremental improvements, the M3 evolved into the M5 variant by 1942, marking a continual process of enhancement to meet the rigorous conditions of warfare.

The M3 Stuart was eventually replaced by the M5 Stuart, but not before proving its worth across various theaters of war.

Its operational history extends beyond its technical specifications, encompassing the experiences of the crews who manned them and the battles in which they fought, making the M3 Stuart an integral part of World War II armored warfare history.

Design and Development

The M3 Stuart was a pivotal American light tank during World War II, known for its balance between mobility, armor, and armament.

It showcased a number of technological advancements over its predecessors, refining the concept of light armor vehicles for the US forces.

Origins and Specifications

The M3 Stuart, named after the Confederate General J.E.B. Stuart, was a natural progression of American light tank design, borrowing elements from the earlier M2 series but with significant enhancements.

Its role was to conduct reconnaissance and support infantry units.

The light tank featured a riveted and welded hull with a turret housing a 37mm main gun equipped with a gyro stabilizer for improved accuracy while on the move.

It was powered by a Continental petrol engine, which gave it a favorable power-to-weight ratio.

• Weight: Approximately 14.7 tons
• Crew: Four (Commander, Gunner, Driver, Co-Driver)
• Powerplant: 7-cylinder Continental W-670-9A petrol engine

Armor and Armament

The armor of the M3 Stuart ranged from 13mm to 51mm in thickness, giving it protection against small arms fire and shrapnel. The sloped angles were an improvement, offering better deflection of shots. However, it was still vulnerable to heavier anti-tank weaponry.

The tank’s primary armament was the 37mm M6 gun, capable of firing both high-explosive and armor-piercing rounds.

Additionally, it carried three to five .30 cal machine guns for secondary defense.

A unique feature of the M3 Stuart was its early adoption of a gun recoil system, which was a new development in tanks of this size.

• Main Armament: 37mm M6 gun
• Secondary Armament: Up to five .30 cal machine guns
• Armor: Ranged from 13mm to 51mm in thickness

Suspension and Mobility

The M3 Stuart utilized a vertical volute spring suspension system, granting it decent cross-country performance and riding comfort.

The tank’s relatively light weight, combined with the 250-300 horsepower from its Continental engine, gave it a maximum road speed of about 36 miles per hour.

It was produced by automobile manufacturers, such as Cadillac, adapting their production lines for wartime output.

The Stuart’s agility made it a valuable asset for reconnaissance missions and rapid wartime maneuvers where quick deployment and relocation were crucial.

• Suspension: Vertical volute spring system
• Engine Output: 250-300 horsepower
• Maximum Road Speed: Approximately 36 mph

Production and Variants

The M3 Stuart was a significant light tank used by the United States and its allies during World War II, with a variety of models and upgrades enhancing its effectiveness throughout its service life.

Early Models

The M3 Stuart, initially known as the Light Tank M3, started production in 1940.

This early model was equipped with a 37mm main gun and four machine guns, and it was operated by a four-man crew.

These early tanks were distinguished by their riveted construction and their use of a radial aircraft engine which was adapted for tank use.

Recognizing the importance of the driving range in the desert, which was particularly important to the British during the North African campaign, the M3 was fitted with two 25-gallon fuel tanks that could be jettisoned if necessary. In early 1942, an all-welded hull became standard, further refining the design of the tank.

To reduce production costs, the M3 (diesel) was produced with a different engine, the Guiberson T1020 diesel engine, which distinguished it from its Continental gasoline-powered counterparts, albeit without major external differences.

M3A1 to M3A3 Improvements

The M3 was followed by the M3A1, which featured several improvements, in particular the absence of the cupola to reduce the silhouette. The storage space in the interior was increased by removing the side machine guns, which were considered superfluous.

The M3A1 version introduced a welded hull and turret to increase protection and featured an improved turret with a gyro stabilizer to increase the gun’s aiming accuracy.

With the redesign of the M3A1, production began in mid-1942, and production of the M3 ended a few months later.

The high point of M3 development was the M3A3 with its radical redesign. To further increase its operational capability, the hull was redesigned to provide additional space for fuel and ammunition. Sand shields, another lesson learned from desert combat, became a standard feature, and the first models rolled off the production line in early 1943.

The M3A3 offered further improvements, including sloped armor for better deflection and the use of twin Cadillac engines, which were more reliable than the previous ones.

Crew ergonomics and combat efficiency were improved on both versions.

These versions of the M3 light tank show an evolution that focused on survivability, range and firepower, reflecting the rapid advances in armored warfare tactics and technology during World War II.

The M5 and M5A1 Series

The M5 series, which included the improved M5A1, commenced production in 1942.

It shared a similar appearance with the M3, but with several key changes such as an upgraded powertrain with the reliable Cadillac engines and a redesigned hull for better protection and crew comfort.

The M5A1 variant became the most produced model, favored for its mechanical reliability and ease of production.

Tank production for the M5 series continued until 1944, contributing significantly to the number of units available for Allied forces.

Operational History

The M3 Stuart light tank served with distinction across multiple theaters in World War II, fulfilling roles from reconnaissance to support of infantry operations.

Its effectiveness was influenced by its speed and relatively good range, which made it suitable for various combat scenarios despite increasing enemy armor advancements.

North African Theater

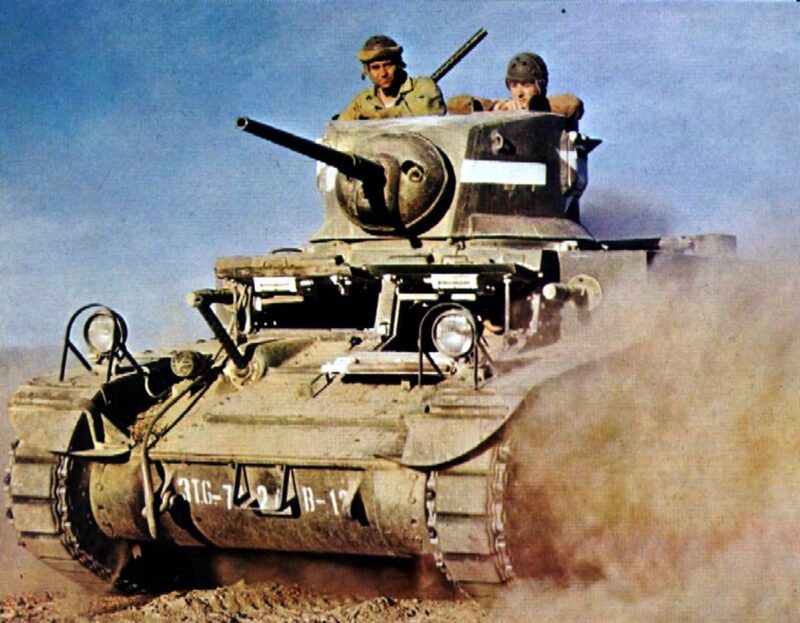

In North Africa, the M3 Stuart played a pivotal role in the North African Campaign, where it was used extensively by both British forces and the Free French.

It provided essential reconnaissance capabilities and supported infantry in the vast desert terrains. The tank’s speed allowed it to engage and withdraw against larger German tanks when necessary.

European Front

On the European front, M3 Stuarts participated in the invasion of Normandy, supporting Allied forces.

Although by the time of the Normandy campaign, they were being supplemented and phased out by superior armored vehicles, they continued to be used for reconnaissance due to their high speed.

In the Eastern Front, Lend-Lease M3 Stuarts were supplied to the Soviet Union, where they complemented Soviet light tanks against the German troops.

Pacific Campaign

In the harsh environments of the Pacific, M3 Stuarts encountered Japanese forces in battles across islands like New Guinea.

The tank’s agility was advantageous in the dense jungle terrain, supporting infantry and engaging Japanese fortifications.

Although its light armor and armament struggled against entrenched positions, its role in reconnaissance and quick strikes was invaluable.

Lend-Lease to Allies

The Lend-Lease program saw the M3 Stuart being dispatched to Allied forces around the globe.

Besides British and Soviet usage, these tanks also served in other Allied armies, equipping units that lacked sufficient armored vehicles of their own.

The M3’s contribution through Lend-Lease was significant, providing much-needed armor support across diverse combat zones.

Tactical Role and Performance

The M3 Stuart was an American light tank employed extensively during World War II.

It served primarily in reconnaissance roles, infantry support operations, and provided flank security.

While not designed to engage heavy German armor, its agility and the presence of the M6 gun allowed it to perform various combat roles.

Reconnaissance and Infantry Support

The M3 Stuart’s compact size and speed made it an excellent reconnaissance vehicle.

Reconnaissance missions required capturing and relaying key tactical information about enemy positions, and these light tanks could navigate quickly through the battlefield to accomplish that.

For infantry support, the M3 Stuart could move alongside troops, offering protection with its 37mm M6 gun and machine guns.

It was particularly effective against enemy infantry and fortifications, supporting the British and other Allied forces in various theaters of war.

Tank Versus Tank Combat

Despite being outmatched by superior German armor, the M3 Stuart occasionally engaged in tank versus tank combat.

It was less effective against larger tanks due to its thinner armor and lighter armament when compared with the heavier M4 Sherman tank.

However, the Stuart could still be a threat to lesser armored vehicles and perform hit-and-run tactics due to its agility.

Screening and Flank Security

The Stuart was instrumental in screening operations, which involved the protection of the main force from surprise enemy attacks.

It provided an outer layer of defense, alerting the main units to the approach of enemy forces.

Additionally, the M3 Stuart played a crucial role in protecting the flanks of advancing Allied forces.

It ensured the security of the sides of a formation, which is critical in preventing the enemy from executing flanking maneuvers that could lead to encirclement.

This role was crucial during rapid advances or retreats, as the protection of the flanks – as originally provided by the cavalry – was essential for maintaining the integrity of the entire unit.

Specifications

Specifications:

Armor:

Armament:

Penetration of the 37 mm M6 gun:

Service statistics:

Animated 3D model of M3 Stuart

Legacy and Influence

The M3 Stuart’s historical contribution extends beyond its active service in World War II, impacting post-war armor development and ingraining itself in cultural memory.

The tank’s operational history with the US Army and Allied forces shaped future tank designs and military strategies.

Post-WWII Service

After World War II, the M3 Stuart saw continued use in various conflicts and by numerous global armed forces.

It participated in the French efforts during the Indochina War, signaling its adaptability in jungle warfare, a stark contrast to its service in the deserts of Operation Crusader and the Battle of Kasserine Pass.

Countries like China continued to employ the M3 Stuart well after the war, showcasing the tank’s durability and versatility.

The tank’s inherent qualities influenced the development of subsequent armored vehicles.

The M3 Stuart’s maximum speed and reliability set precedents for light tank mobility expectations.

Lessons learned from tank versus tank combat experiences with vehicles such as the Panzer III and Japanese tanks led to enhancements in future American tanks, such as the M24 which replaced the Stuart series in service.

Cultural Impact

The M3 Stuart carved a niche in popular culture, often portrayed in films and documentaries about World War II. Its nickname “Honey” by the British Army reflects the tank’s favorability for its mechanical reliability and smooth ride.

Models and replicas of the M3 Stuart are prominent among war enthusiasts and history museums, retaining the tank’s legacy in physical form.

Media often reference the M3 series tanks, including the M3 Stuart and its close relative, the M3 Lee, highlighting their roles in major historical battles. Books and historical references frequently discuss these vehicles’ impacts on the Red Army, the Philippines, and the re-tooling of Yugoslavia’s military forces.

The M3 Stuart’s array of armaments, particularly the Browning M1919A4 machine gun and variants equipped with the 75mm howitzer, are noted for their influence on the firepower of future light tanks.

By contributing to the evolution of military doctrine for Great Britain, the United States of America, and other nations, the legacy of the M3 Stuart, both as a combat car and a light tank, continues to be significant in the historical assessment of armored warfare.

Frequently Asked Questions

The M3 Stuart was a prominent light tank during World War II with distinct specifications and performance capabilities. This section addresses common inquiries about its features, production, and historical significance.

What were the specifications of the M3 Stuart light tank used in World War II?

The M3 Stuart light tank was armed primarily with a 37 mm main gun and had varying degrees of armor thickness, up to 51mm. It weighed approximately 14.7 tons and was powered by a 250-275 hp gasoline engine M3 Stuart.

How did the M3 Stuart compare to the later M5 Stuart tank?

The M5 Stuart featured an upgraded twin Cadillac engine, improved armor, and a redesigned hull compared to the M3 Stuart. These enhancements aimed to address the power and protection shortcomings of the earlier M3 model Light Tank M3 Stuart.

Are there still M3 Stuart tanks available for purchase?

The availability of M3 Stuart tanks for purchase varies depending on private collectors and vehicle surplus sales. However, they are considered rare and valuable pieces of military history, often fetching high prices when they do appear on the market.

What was the maximum top speed achieved by the Stuart light tank?

The Stuart light tank could reach a maximum speed of approximately 36 mph (58 km/h) on roads, which was relatively fast for a tank of its era and advantageous for reconnaissance roles M3 Stuart light tanks.

How many crew members operated the M3 Stuart tank?

Typically, the M3 Stuart tank required a crew of four: a commander, gunner, driver, and a co-driver/bow machine-gunner.

How many M3 Stuart tanks were produced during its service in World War II?

Approximately 22,800 M3 and M5 Stuart tanks were produced. They served not only the U.S. but also Britain, the Soviet Union, and other Allied nations throughout the war M3 Light Tank.

Stuart in War Thunder

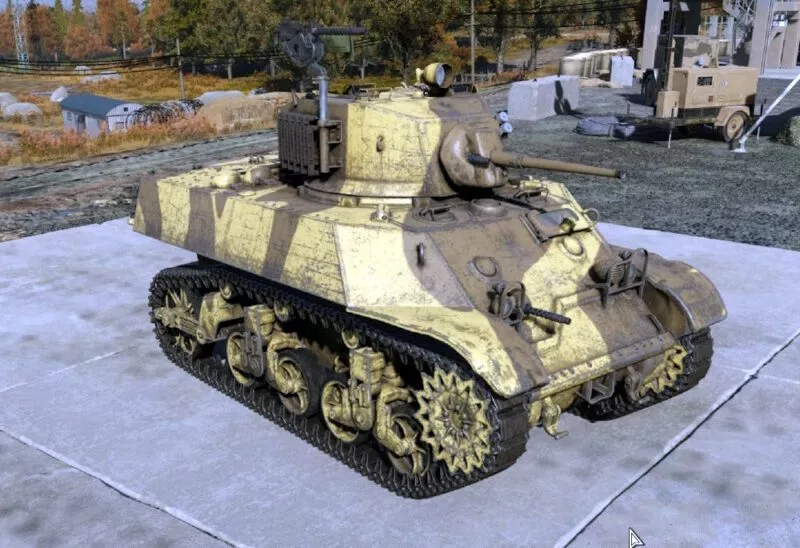

Video of a mission with the French M3A3 Stuart (BR 2.7), the fighter M.B.152C1 and the ground attack aircraft Br.693AB2 in a ‘Realistic Land Battle’ from the Free-2-Play game War Thunder:

Who does not know the F2P tank and plane war game War Thunder can download it from here for free:

References and literature

Krieg der Panzer (Piekalkiewicz)
The Encyclopedia of Weapons of World War II (Chris Bishop)
Soviet Tanks and Combat Vehicles of World War Two (Steven J. Zaloga, James Grandsen)
British and American Tanks of World War II (Peter Chamberlain, Chris Ellis)
Datafile – British Tanks and Formations 1939-45 (Malcom A.Bellis)
Panzer und andere Kampffahrzeuge von 1916 bis heute (Christopher F. Foss, John F. Milsom, Colonel John Stafford Weeks, Captain Georffrey Tillotson, Richard M. Ogorkiewicz)
Panzerkampfwagen des 1. und 2. Weltkrieges (Andrew Kershaw)
Fire and Movement (RAC Tank Museum)
